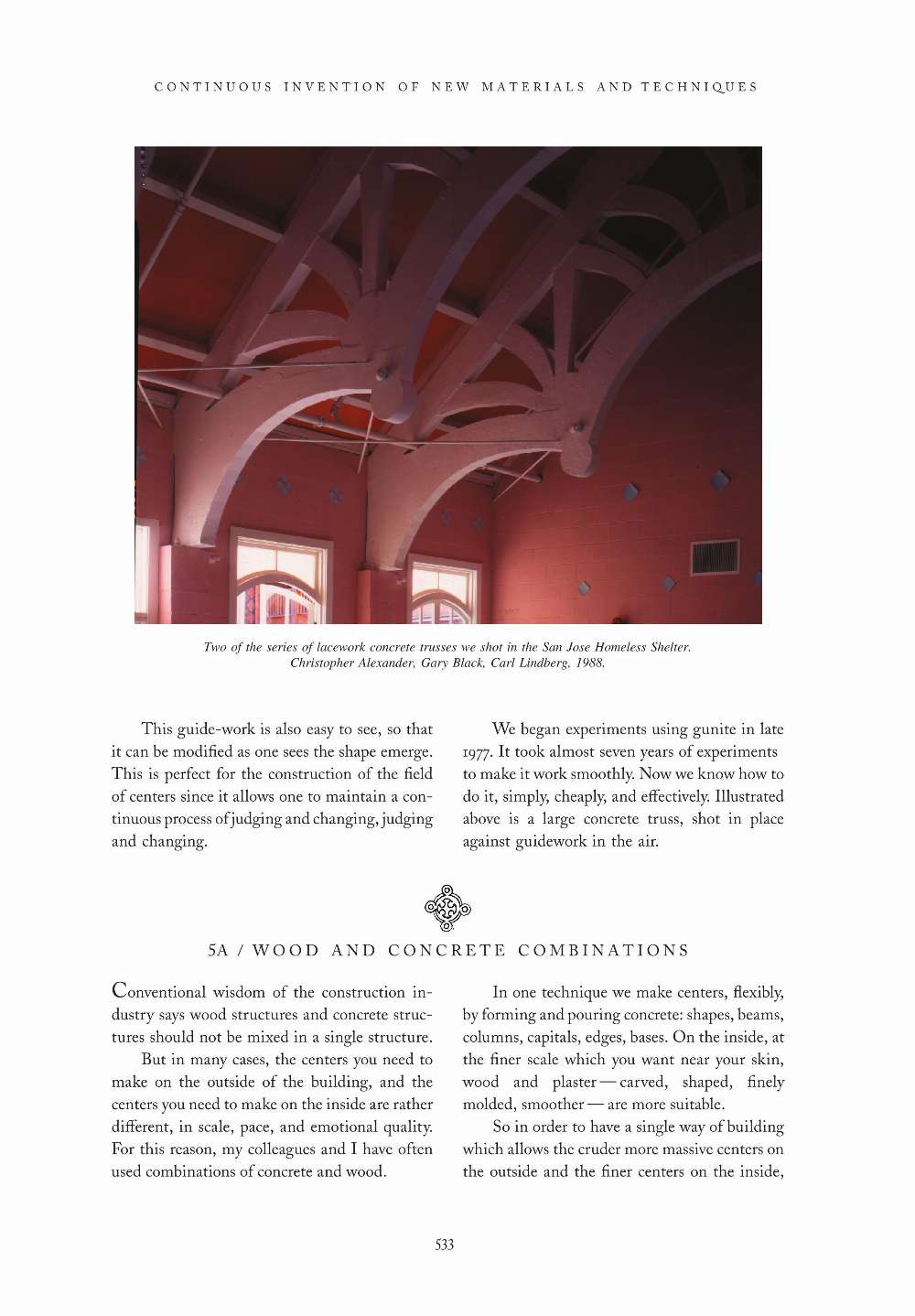

Chapter 16. Continuous Invention of New Materials and Techniques, 5A / Wood and Concrete Combinations

“A Vision of a Living World”, the third volume of “The Nature of Order” series, presents, for the first time, a full spectrum of Alexander’s and CES built and unbuilt works. The book describes hundreds of buildings, plans, neighborhoods, drawings, ...

One of the main topics of research, included in every building project, was to identify, early on in the design process, the material and techniques of construction. This would re-establish building as an art, and allow rapid shaping and adaptation, ...

Timber frame and concrete combination system: the vertical loads are taken by the interior post and beam system system, where columns and beams are simply pinned together by invinsible steel pins. All shear forces are taken by a one and ...

Timber frame and concrete combination system: the vertical loads are taken by the interior post-and-beam system system, where columns and beams are simply pinned together by invinsible steel pins. All shear forces are taken by a one and a half ...
