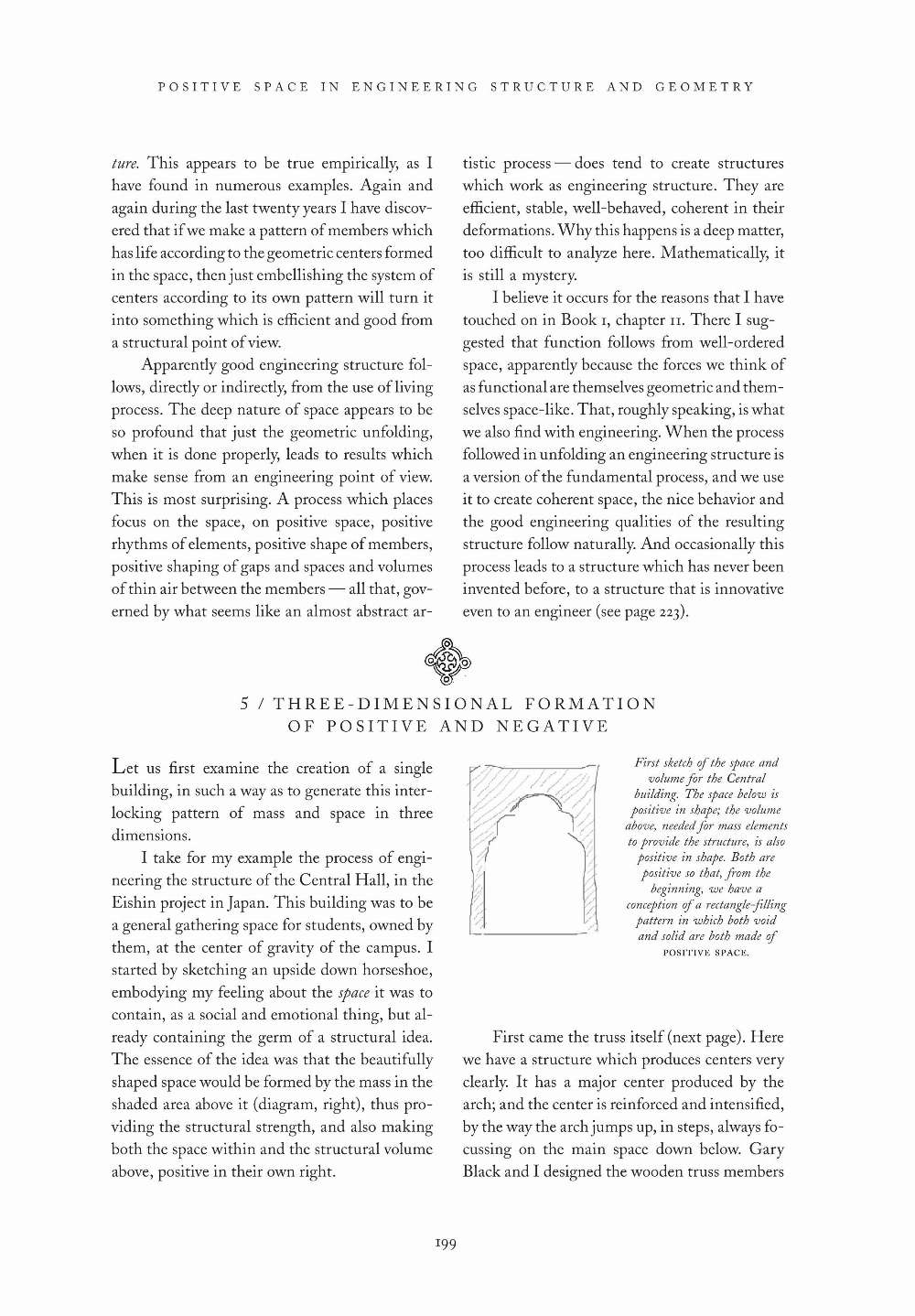

Chapter 6. Positive Space in Engineering Structure and Geometry, 5 / The Three-Dimensional Formation of Positive and Negative
References
-
Eishin Campus - High School: Central Hall exterior wall X-truss, connected to the interior roof truss
1984
Longitudinal X-truss on the long direction exterior wall of the building below the roof, connected to the interior curved truss of the building with moment connections. .
-
Eishin Campus - High School: Central Hall heavy timber truss with curved members
1984
Douglas fir horse-shoe-shaped truss, a pure compression truss, with no interior bracing, but with a longitudinal exterior X-truss. The truss is connected to the massive concrete piers at the base with moment connections.
-
Eishin Campus - High School: Central Hall massive concrete piers
1985
Four-feet thick concrete base walls with arched openings create an alternating repetition between massive piers and deep openings, with positive space and good shape both on the piers and the arches. Arches and seats form alcoves, and the piers support ...
