Martinez Tile Glazing Workshop: The first experimental all-gunite concrete building – construction of columns and beams
1979Walls, columns, vaults, beams, ceilings, all made by gunite shot on a light weight and low cost guidework of lightweight wooden frame. Gunite is a high-strength concrete made of sharp sand and concrete, carried in air under high pressure, shot dry from a hose, with water added through fine holes at he last minute before the material leaves the hose. Gunite does not require formwork, as poured concrete; instead it is shot against a guide-work, made easily and cheaply.
Contents
-
Martinez Tile Glazing Workshop: The first experimental all-gunite concrete building; columns and beams formwork erection - Photographs of 1st step
01/01/1979
Thirteen photographs with overviews of the formwork for the columns and beams of the building, adapted to the requirements of the gunite method.
-
Martinez Tile Glazing Workshop: The first experimental all-gunite concrete building; columns and beams formwork erection - Photographs of 1st step
01/01/1979
Twenty-one photographs with close-ups, focusing on the details of the column and beam formworks, built specifically to enable the gunite requirements.
-
Martinez Tile Glazing Workshop: The first experimental all-gunite concrete building; columns and beams shooting concrete - Photographs of 2nd step
01/01/1979

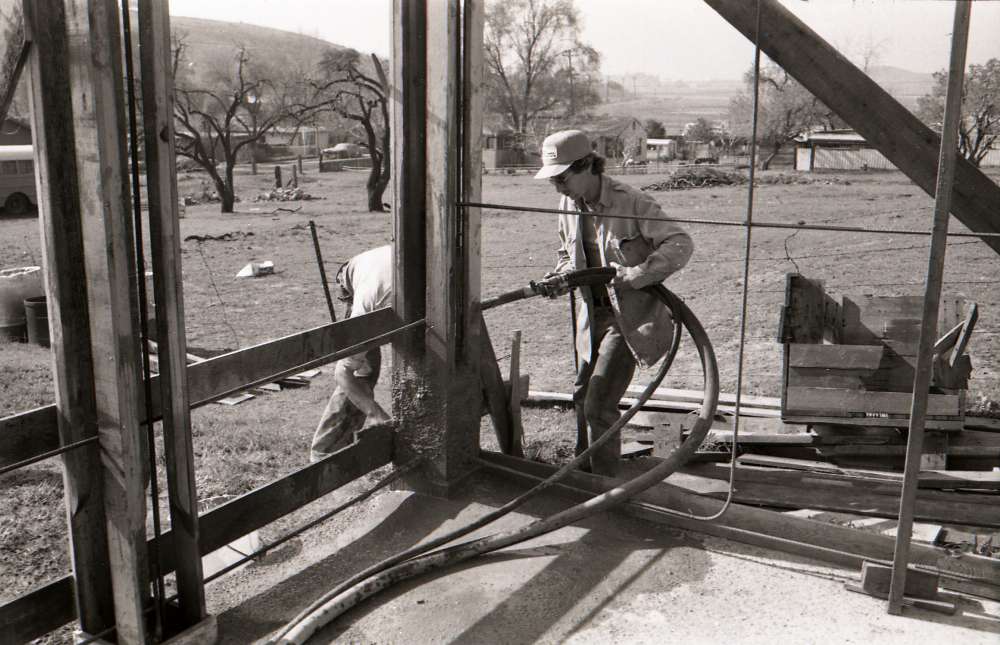

Fifteen photographs showing the setting up of the equipment for spraying the concrete, as well as the spraying of concrete in the formworks of columns and beams.
SEE ALL Photographs
