Martinez Tile Glazing Workshop: The first experimental all-gunite concrete building, with vaulted ceiling and pitched roof
1979Barrel vault ceiling and pitched roof, both made by using the gunite technique, constructed in six basic steps: 1) Fabrication of a full scale mockup of a section of the ceiling formwork, out of metal and plywood; 2) Construction of the vaulted ceiling formwork, after the slope of the pitched roof is finalized with a mockup with plywood sheets; 3) reinforcement of the barrel vault and shooting of gunite; 4) construction of the cable ends of the pitched roof; 5) waterproofing and thermal insulation shaped as per the slope of the pitched roof, so as to function as its formwork; 6) reinforcement of the concrete roof and shooting of gunite.
Contents
-
Martinez Tile Glazing Workshop: The first experimental all-gunite concrete building; vaulted ceiling and pitched roof construction process - Photographs of 1st step construction stage
01/01/1979
Eighteen photographs depicting the first step of the vaulted ceiling and the pitched roof construction process, which is the making of a full scale mock-up of a section of the ceiling formwork, out of metal and plywood; work towards finalizing ...
-
Martinez Tile Glazing Workshop: The first experimental all-gunite concrete building; vaulted ceiling and pitched roof construction process - Photographs of 2nd step construction stage
01/01/1979
Twenty-three photographs depicting the second step of the vaulted ceiling and the pitched roof construction process, which includes a mock-up with plywood sheets secured on the building beams, for finalizing the slope of the pitched roof, as well as the ...
-
Martinez Tile Glazing Workshop: The first experimental all-gunite concrete building; vaulted ceiling and pitched roof construction process - Photographs of 3rd step construction stage
01/01/1979

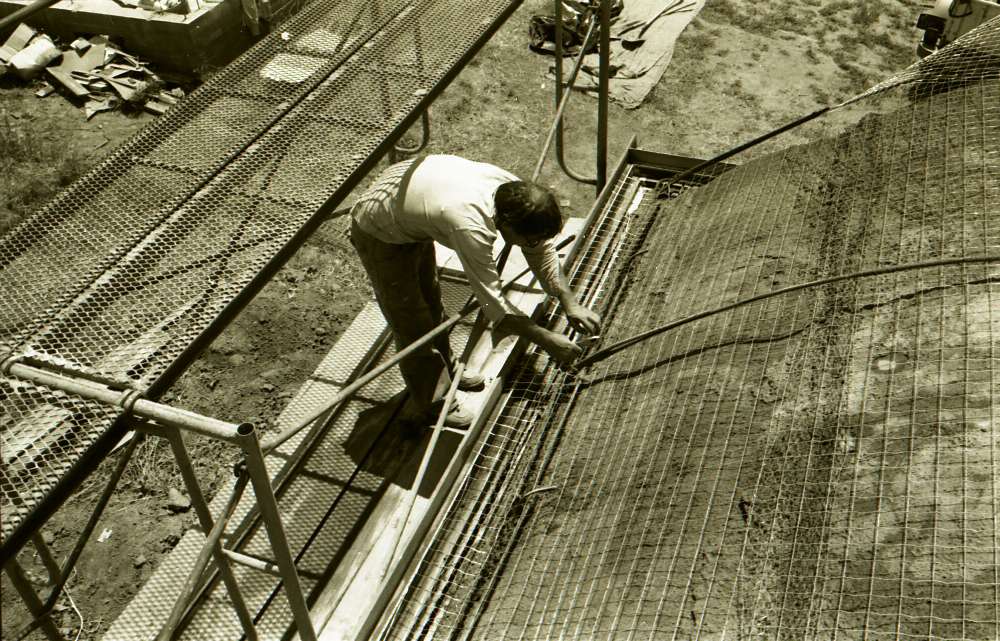

Twenty photographs depicting the third step of the vaulted ceiling and the pitched roof construction process, which includes the treatment of the formwork surface, the placing and fastening of steel bars and steel mesh reinforcement, and ultimately the shooting of ...
