Megaron Mousikis Athinon – Opera House: Multi-colored marble floors, consisting of various sizes and different color marble pieces in geometric and ornamental patterns
2001Prefabrication of marble floors for the concourse areas of about 8.000 m2, in sections of about two feet by four feet, assembled on a fiberglass matt, with the marble pieces being glued with epoxy to the mat. Individual pieces were cut by using computer-driven marble cutting techniques; computer was fed with the actual floor mockups, designed and tested in real dimensions. Paper mockups, marble mockups, computer produced sketches and final drawings were used as means for the design of the floor patterns and for testing them in their actual size.
Contents
-
Megaron Mousikis Athinon - Opera House: Multi-colored marble floors; mock-up of marble tile
01/01/2001

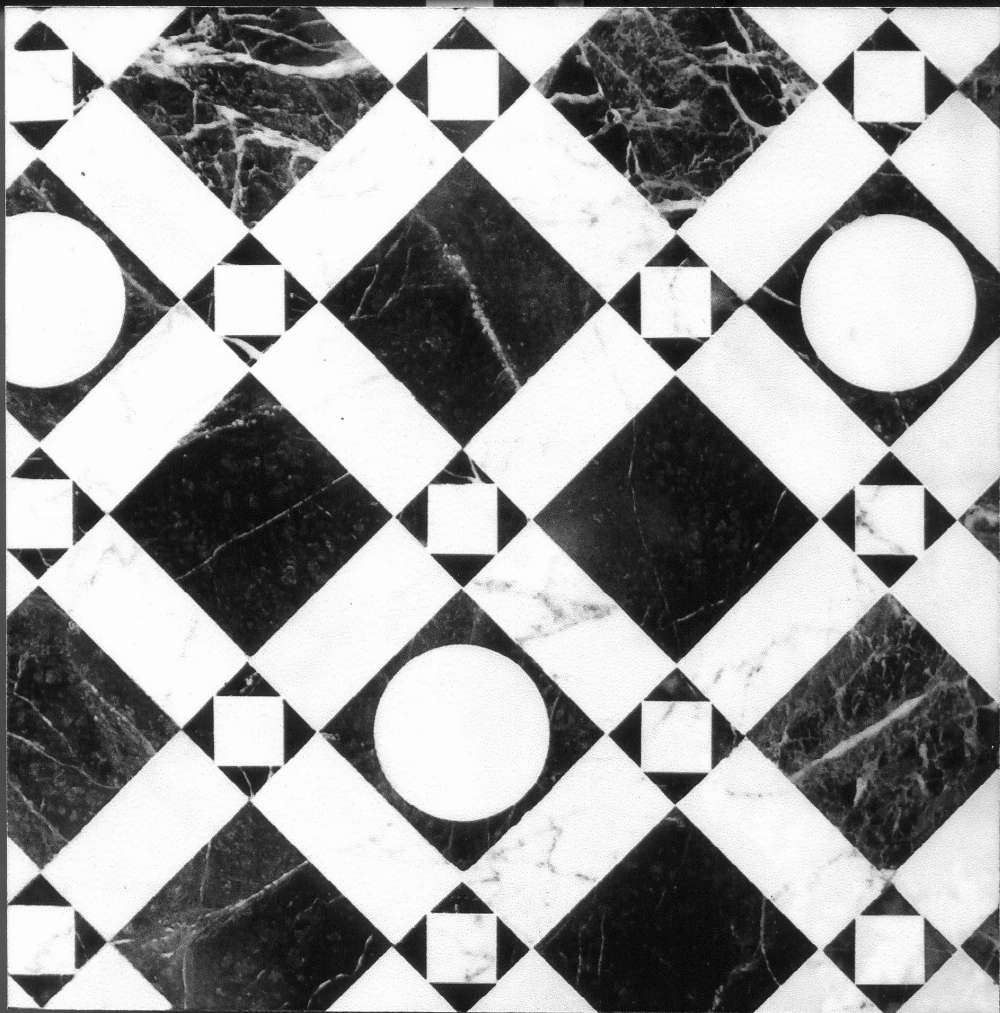

A small piece of a floor in black, white and green marble; a test tile, intended for the Music Library floor, forming the geometric floor pattern, a mosaic of one hundred pieces, cut using a precision water jet cutter.
-
Megaron Mousikis Athinon - Opera House: Multi-colored marble floors; paper mock-up of a floor pattern
01/01/2001
Three large sheets of paper, CAD-printed mock-ups of the library floor design, all with the same geometric pattern, but with variations of black and white pattern arrangements; one having paste-up parts and one, some red and blue color tested.
-
Megaron Mousikis Athinon - Opera House: Multi-colored marble floors; paper mock-up of a floor pattern
01/01/2001
Four sheets of a full-scale free-form floor pattern with blue and white wavy lines and three large, fish-shaped cut-out patterns, overlaid on them. .
SEE ALL Models & Mock-ups
-
Megaron Mousikis Athinon - Opera House: Music Library marble floor - Photographs of mock-up
01/01/2001
One color photograph of the marble tile mock-up, made to size out of more than 100 white and green pieces of Greek marble; two more black and white photographs .
-
Megaron Mousikis Athinon - Opera House: Music Library marble floor - Photographs of mock-up
01/01/2001
Two photographs of the paper mock-ups made to size and thested on the ground, before finalizing the marble tile mock-up, depicting two stages of its development.
-
Megaron Mousikis Athinon - Opera House: Music Library marble floor - Photographs of mock-up
01/01/2001
Photograph of an early paper mock-up for the Music Library marble floor, made to size and tested on the ground.
