Sala House: Preliminary Design – Framing Structure
01/01/1982
Structural Design,
Preliminary Design,
Framing Plan, Details
Designers:
Christopher Alexander, Gary Black, Berkeley, CA, U.S.A.
Medium:
Original on Tracing Paper
Size:
23"x29 1/2"
Scale:
1/4"=1'
Download File
Content of
Drawing
Sala House: Preliminary Design - Framing Structure
01/01/1982
Structural Design,
Preliminary Design,
Framing Plan, Details
Designers:
Christopher Alexander, Gary Black, Berkeley, CA, U.S.A.
Medium:
Original on Tracing Paper
Size:
23"x29 1/2"
Scale:
1/4"=1'

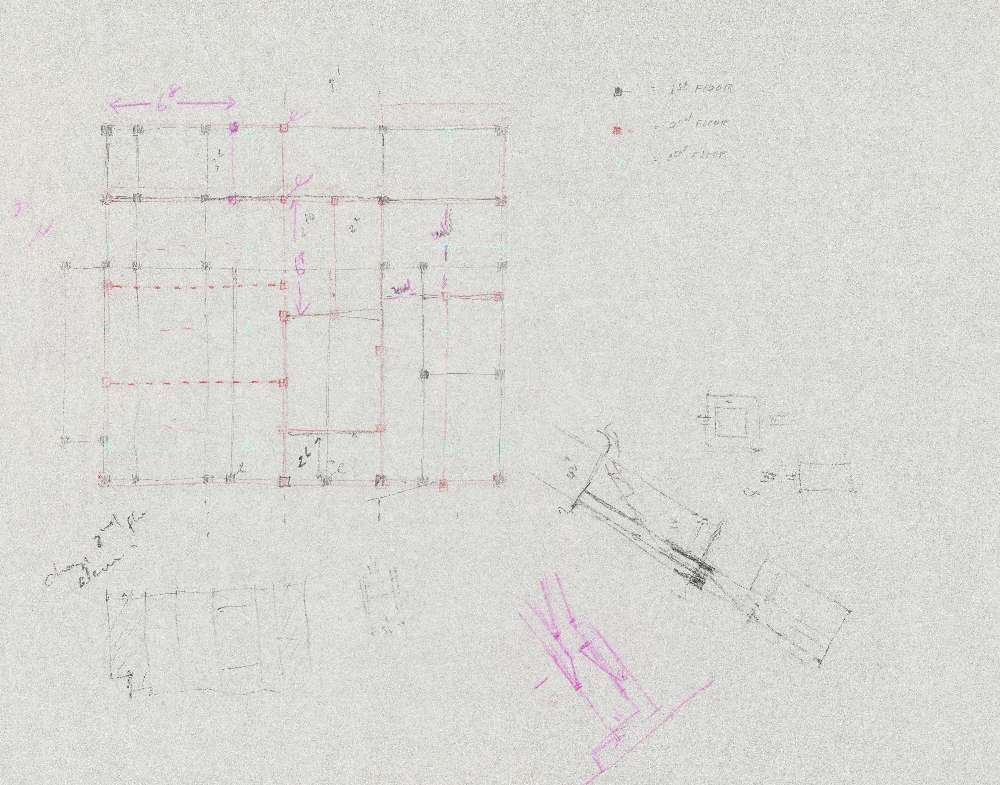

Three sheets of structural drawings: the first one includes the framing of the three floors; the second is a colored overlay of the three floor showing the “irregularity” of the load bearing structure; the third one is a sketch of ...
