Drawing

Haworth New Office Furniture System: Presentation Drawing – Floor plan

01/03/1986

Architectural Design, Presentation Drawing, Floor Plan

Designers:

Christopher Alexander, Artemis Anninou, Gary Black, Berkeley, CA, U.S.A.

Medium:

Original on Vellum

Size:

24"x36"

Scale:

3/16"=1'

Content of

Drawing

Haworth New Office Furniture System: Presentation Drawing - Floor plan 01/03/1986

Architectural Design, Presentation Drawing, Floor Plan

Designers:

Christopher Alexander, Artemis Anninou, Gary Black, Berkeley, CA, U.S.A.

Medium:

Original on Vellum

Size:

24"x36"

Scale:

3/16"=1'

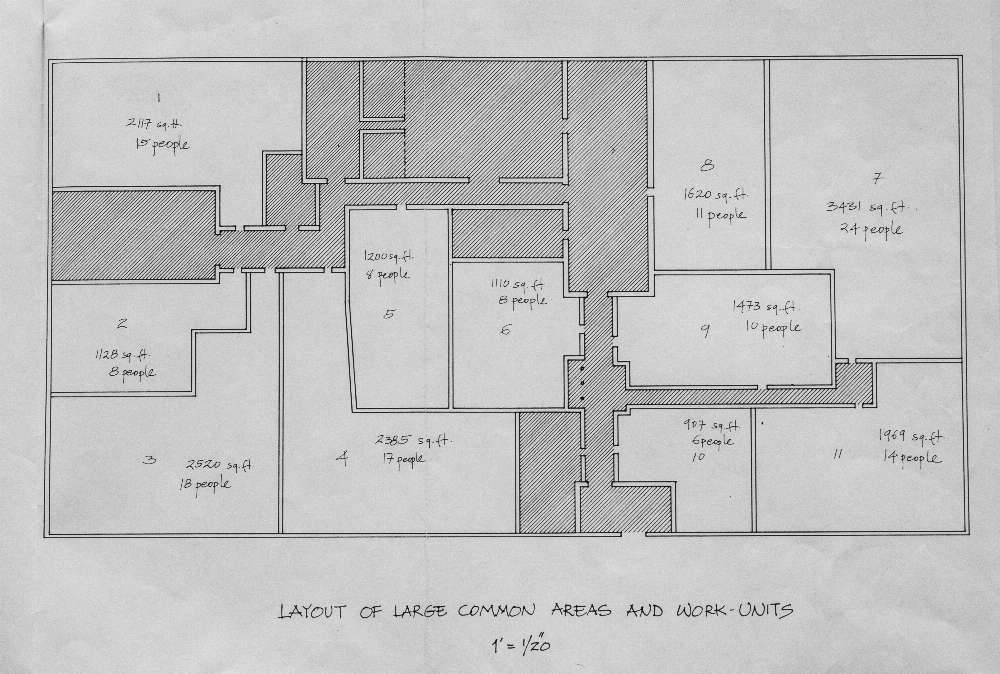

Floor plan of a typical multistory office building, which illustrates the geometric character of the new space conception. The building is assumed to be 180-feet by 118-feet, which is typical for a contemporary high-rise building, and the floor contains space ...
