Drawing

The Julian Street Inn – Shelter for the Homeless: Building Permit set R of drawings for the “Residential Building” – Front Porch & Exterior Staircase

10/07/1987

Structural Design, Permit Drawing, Floor Plan, Section, Elevation

Designers:

Christopher Alexander, Gary Black, James Maguire, Eleni Coromvli, Berkeley, CA, U.S.A.

Medium:

Blueprint

Size:

24"x36 1/2"

Scale:

1/2"=1'

Content of

Drawing

The Julian Street Inn - Shelter for the Homeless: Building Permit set R of drawings for the "Residential Building" - Front Porch & Exterior Staircase 10/07/1987

Structural Design, Permit Drawing, Floor Plan, Section, Elevation

Designers:

Christopher Alexander, Gary Black, James Maguire, Eleni Coromvli, Berkeley, CA, U.S.A.

Medium:

Blueprint

Size:

24"x36 1/2"

Scale:

1/2"=1'

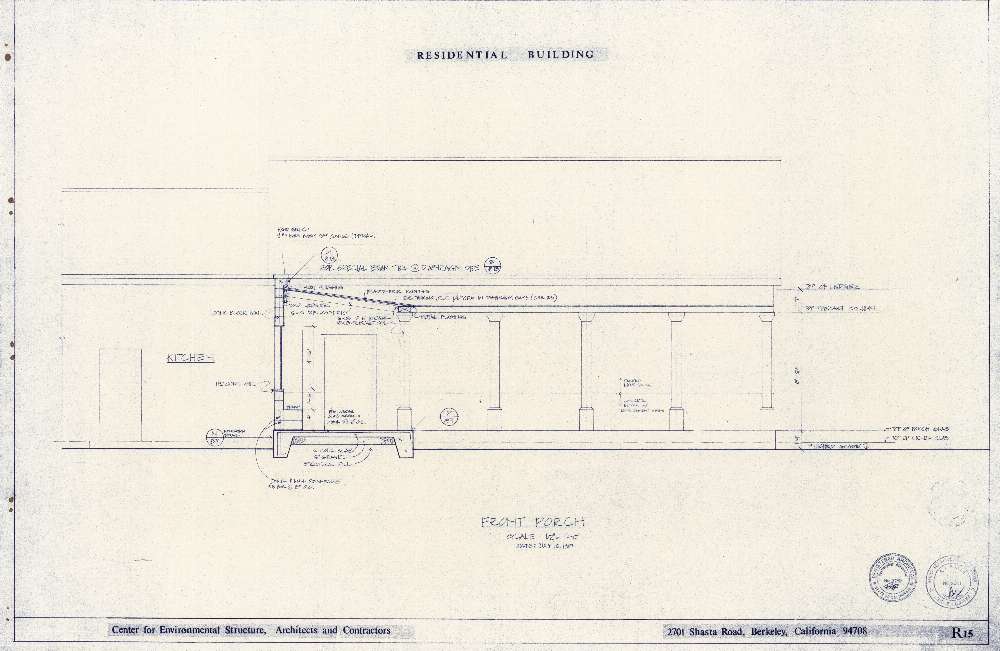

Two structural drawings including: 1) A section of the front porch and its structural specifications and 2) A section, an elevation and a plan of the exterior staircase and its specifications.
