Drawing

The Julian Street Inn – Shelter for the Homeless: Building Permit set K of drawings for “Kitchen & Showers” – Plans and Structural Cross Section

10/07/1987

Architectural Design, Permit Drawing, Floor Plan, Section

Designers:

Christopher Alexander, Gary Black, James Maguire, Eleni Coromvli, Berkeley, CA, U.S.A.

Medium:

Blueprint

Size:

24"x36 1/2"

Scale:

1/8"=1', 1/2"=1', 1"=1',

Content of

Drawing

The Julian Street Inn - Shelter for the Homeless: Building Permit set K of drawings for "Kitchen & Showers" - Plans and Structural Cross Section 10/07/1987

Architectural Design, Permit Drawing, Floor Plan, Section

Designers:

Christopher Alexander, Gary Black, James Maguire, Eleni Coromvli, Berkeley, CA, U.S.A.

Medium:

Blueprint

Size:

24"x36 1/2"

Scale:

1/8"=1', 1/2"=1', 1"=1',

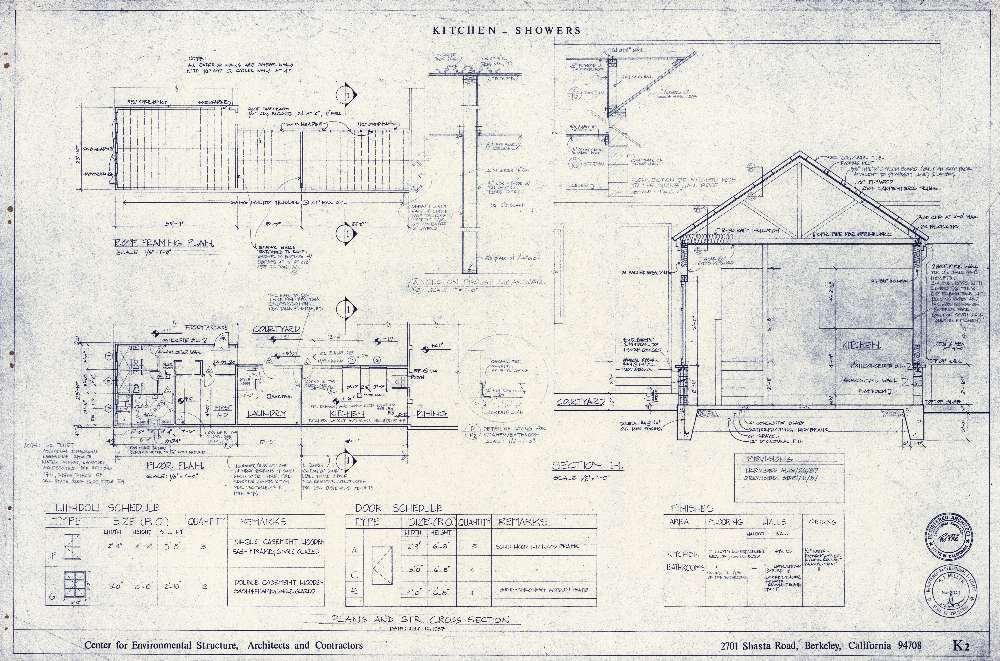

Architectural drawing with plans, cross section, details and window & door schedules for the kitchen and shower areas; also a copy of the previous drawing with marked up items with detailed clarifications.
