Neighborhood of Seventy Low-Cost Houses: Preliminary Design Drawings – Site layout process plans

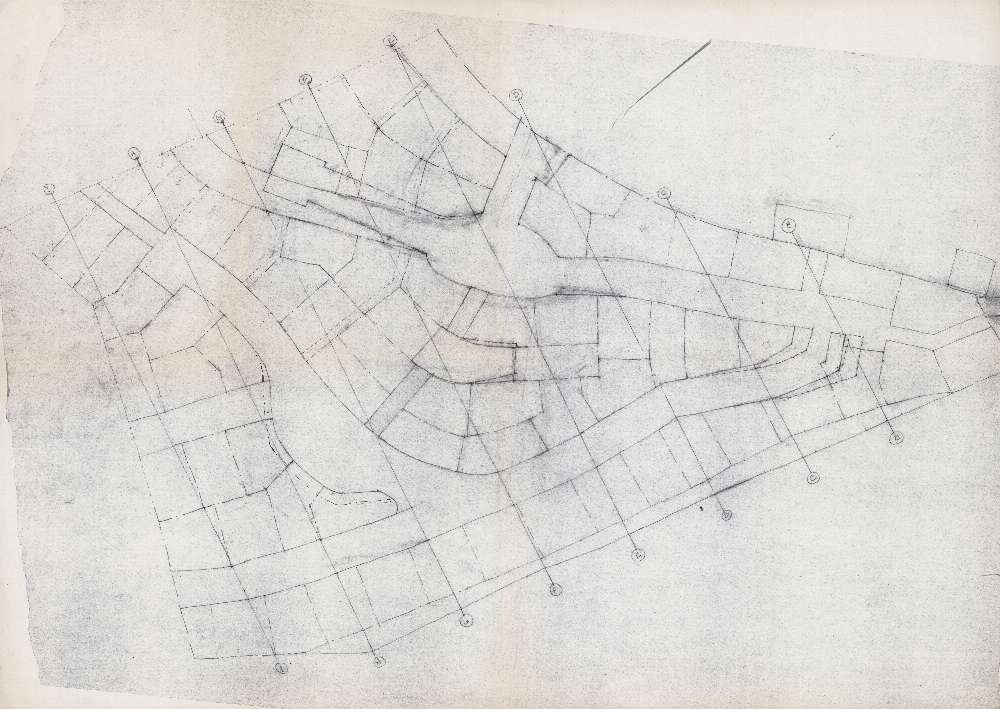

2) Site plan with lot subdivision; areas of conflicting forces between the street network and the lot subdivision need resolution

Six survey drawings of the project site recording the stages of the lay-out process using stakes on the land, and recurring adjustments. The first survey drawing is the recording of the formation of the major and secondary centers, as well ...
