Berryessa Terraced House: Wooden post and beam, load bearing structural frame combined with sprayed concrete exterior walls – Design Development Drawings

15/11/1981

Design Development, Section, Details

Designers:

Christopher Alexander, Artemis Anninou, Berkeley, CA, U.S.A.

Medium:

Original on Vellum

Size:

Extract from 24"x30 1/2" drawing

Scale:

1/2"=1'

Content of

Drawing

Berryessa Terraced House: Wooden post and beam, load bearing structural frame combined with sprayed concrete exterior walls - Design Development Drawings 15/11/1981

Design Development, Section, Details

Designers:

Christopher Alexander, Artemis Anninou, Berkeley, CA, U.S.A.

Medium:

Original on Vellum

Size:

Extract from 24"x30 1/2" drawing

Scale:

1/2"=1'

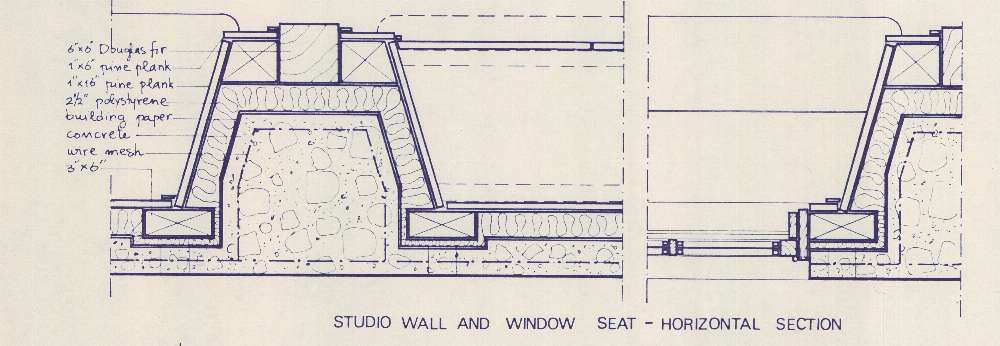

Two drawings with vertical and horizontal section details of the studio volume of the house, depicting the timber-concrete combination construction system, across walls, window seats, ceiling and roof, in which the timber frame is used for vertical forces and the ...
