Drawing

The Campus of Eishin – High School: Gymnasium black shikkui plastered walls and roof detail – Design Development Drawings
Shaping and spacing of windows

01/04/1984

Design Development, Elevation, Details

Designers:

Christopher Alexander, Hansjoachim Neis, Artemis Anninou, Berkeley, CA, U.S.A.

Medium:

Blueprint

Size:

Extract from 24"x42" drawing

Scale:

1:50, 1:10

Content of

Drawing

The Campus of Eishin - High School: Gymnasium black shikkui plastered walls and roof detail - Design Development Drawings 01/04/1984

Design Development, Elevation, Details

Designers:

Christopher Alexander, Hansjoachim Neis, Artemis Anninou, Berkeley, CA, U.S.A.

Medium:

Blueprint

Size:

Extract from 24"x42" drawing

Scale:

1:50, 1:10

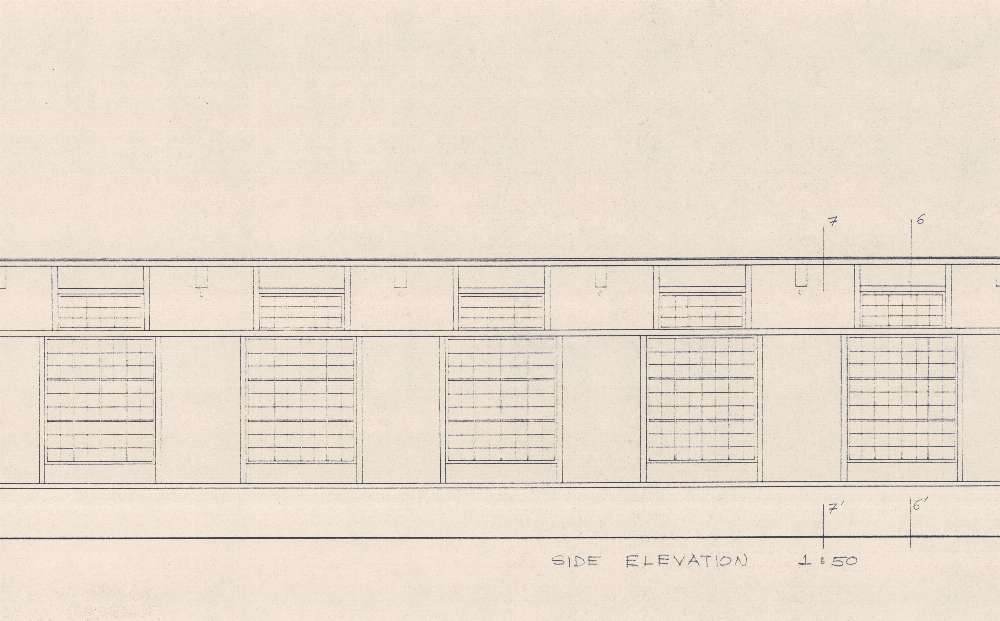

Detail of the elevation of the Gymnasium side wall depicting the alternating sequence of windows and wall segments with the orange-painted steel plates, below the roof eave, marking the ends of the truss rafters and functioning as ornaments on the ...
