Berryessa Terraced House: Design Development Drawings – Final design based on the survey of the top boards of the foundation formwork

Terraced house built for a couple; the house consists of six building volumes, gracefully positioned on a wooded slope among white oak trees, and includes the living room - kitchen volume, the studio volume, the bedroom - library volume, a ...

Site plan with contour lines, existing trees, roof configuration of the various buildings together with outdoor structures, and their distance dimensions from the lot boundaries.

Floor plan depicting the five volumes of the house –main house, library building, storage tower, workshop and carport– and the outdoor structures connecting the individual volumes.

Drawing with five sections through all the individual house volumes and their connecting structures.

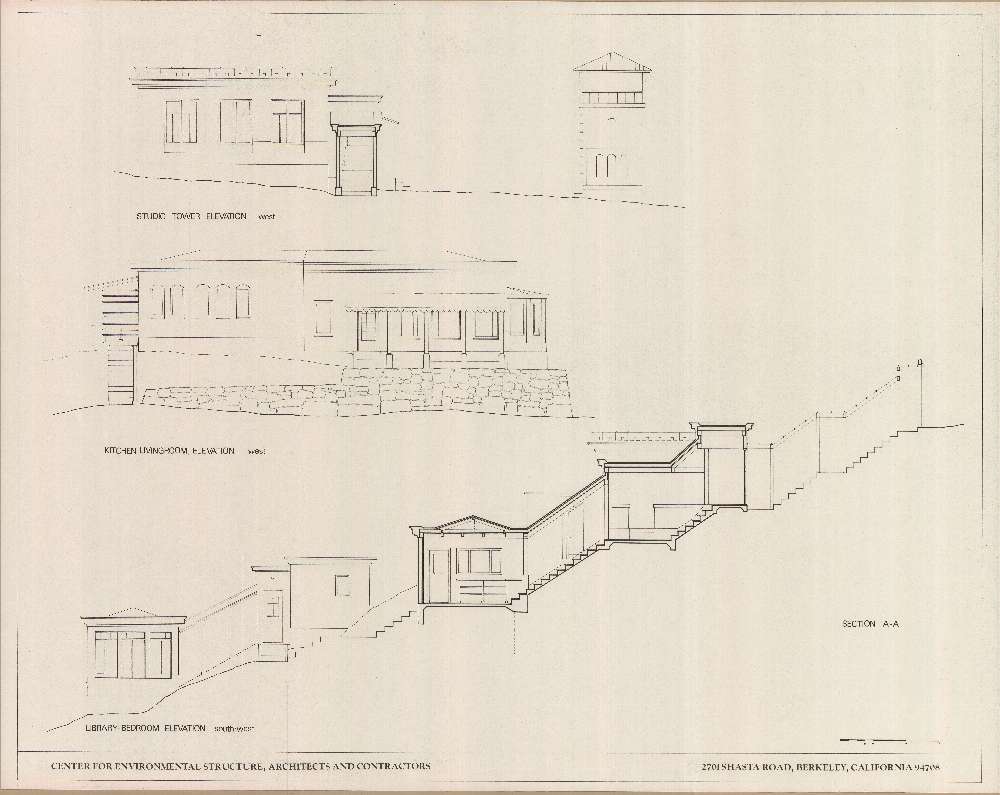

Two drawings, one of a cross section through part of the house, starting at the top of the site all the way to its lower areas, and another one of the main volume west elevation.

Photographs of four design development drawings of the house including Floor Plan, Elevations, Sections and Construction Details. These hardline drawings were produced after the completion of the construction of the formwork for the foundation works, ensuring that all trees of ...
