Pasadena Zoning Ordinance for Multi-Family Housing: Design Development Drawings – Examples on narrow lot with underground parking

01/01/1987

Architectural Design, Design Development, Site Plan

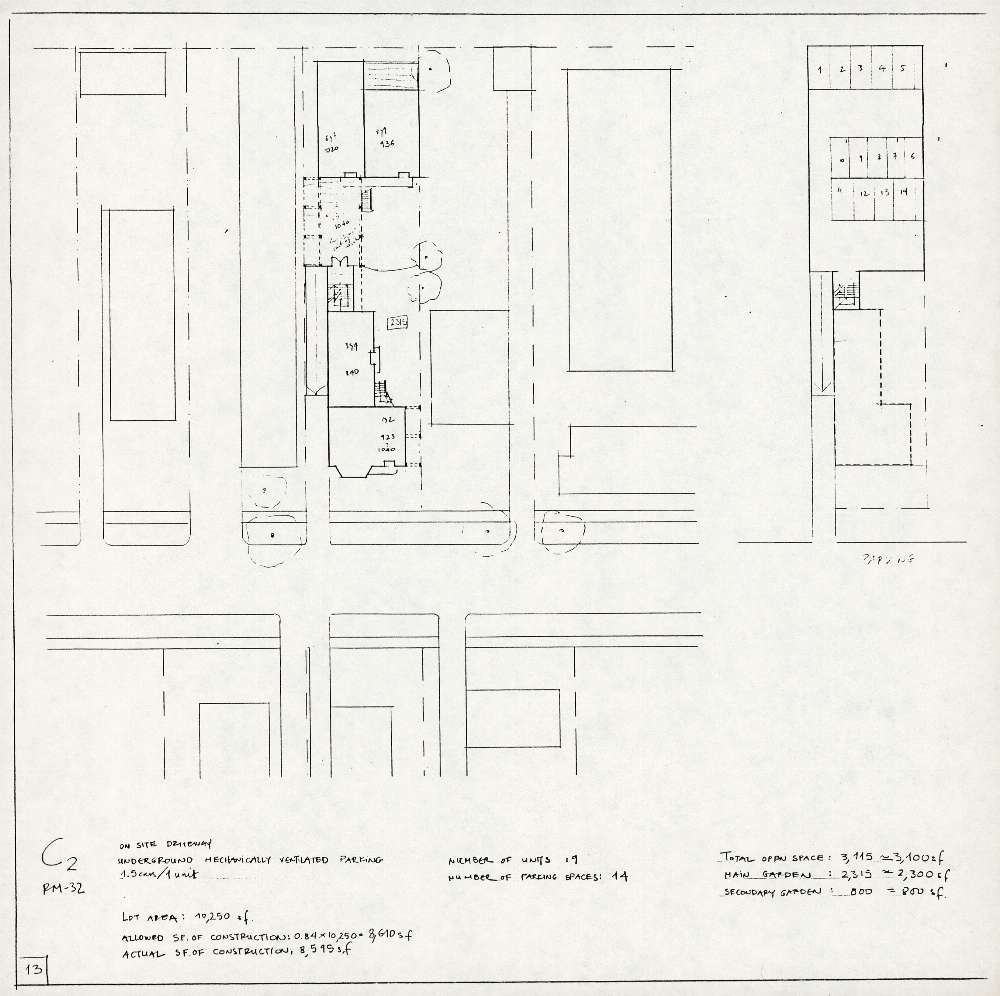

Example for a new development on a narrow lot with underground parking – RM32, Oakland St. Site plan illustrating an optimal development-proposal; study of the currently permitted sq. ft. quantities.

Designers:

Christopher Alexander, Artemis Anninou, Berkeley, CA, U.S.A.

Medium:

Photocopy

Size:

11"x17"

Scale:

1/32"=1'

Download File

Content of

Project

Pasadena Zoning Ordinance for Multi-family Housing 1987 to 1988

Pasadena, CA, U.S.A.

Zoning Ordinance, Residential, Realized , Completed in 1988 and implemented

Client:

Pasadena Multi-family Housing Task Force

C.E.S. staff:

Christopher Alexander, Artemis Anninou, Friso Broeksma

Project cost:

$135,000

Project stages:

Pattern language for project by C.E.S. Generative rules for urban growth process Generative rules for building layout process Implementation process

The purpose of the draft ordinance was to define new guidelines which would permit high intensity development to continue in a way which is in keeping with Pasadena's heritage. Respect for the existing physical qualities of the old Pasadena residential ...
