Sala House: Presentation Drawings – Second and third floor plans with special design and construction elements

01/01/1982

Architectural Design, Presentation Drawing, Floor Plan, Details

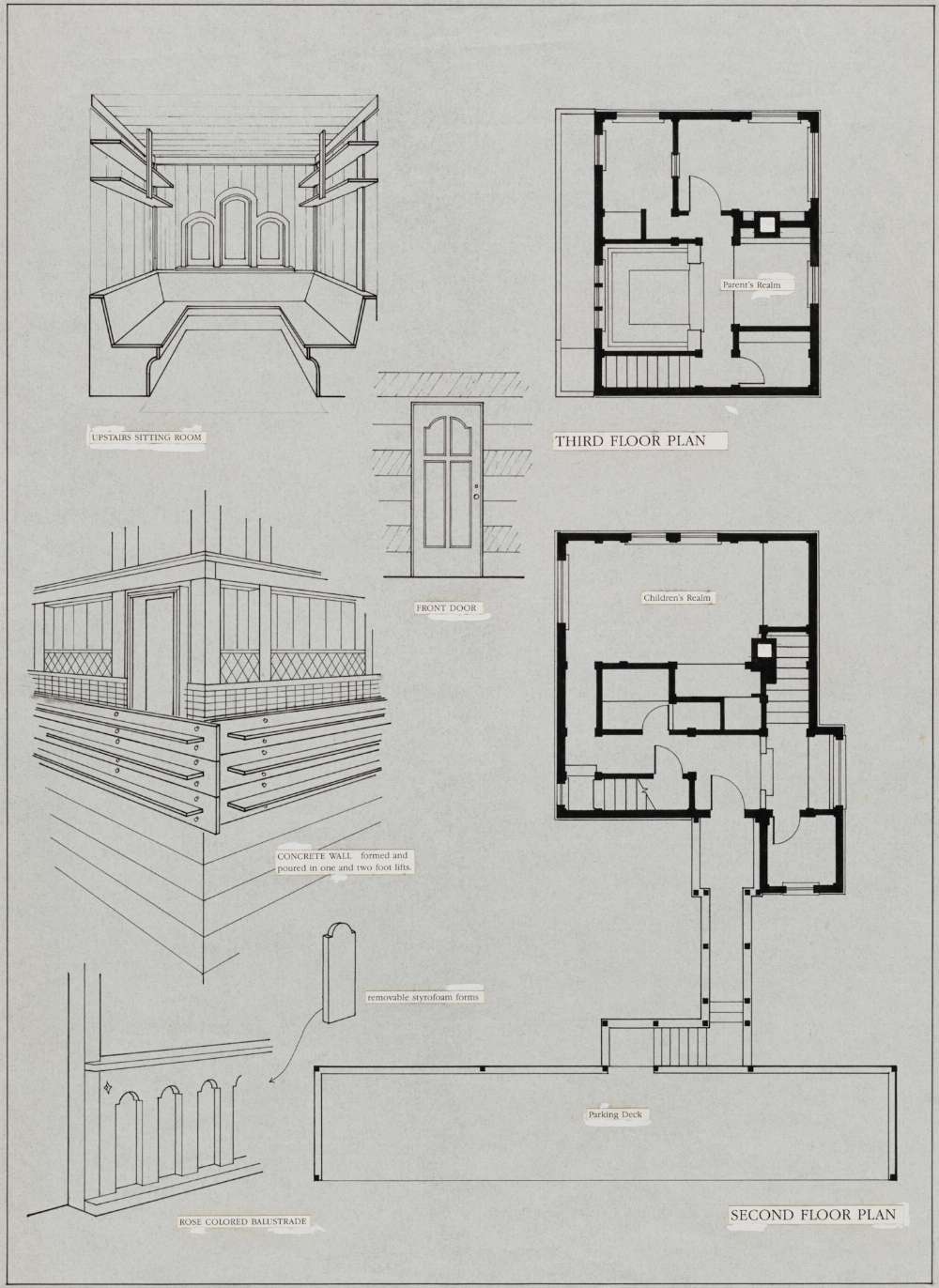

Drawing sheet with the second & third floor plans, and perspectives of special features of interior and exterior elements, like concrete balustrade, door, alcove, exterior concrete wall construction system .

Content of

Project 1 Items

Sala House 1981 to 1983

700 Hillside, 94706, Albany, CA, U.S.A.

Residential, Realized , Construction completed in Jun-1983

Three-story tower, 20 feet by 20 feet in plan on each floor, on a wooded, sloping site. The interior structure of the house is wood post and beam with pine panelling and hand-painted surfaces, and the exterior is a red ...

References

Construction Innovations 1 Items

Sala House: Wooden post and beam, load bearing structural frame combined with red and grey cast concrete exterior walls 1982

Construction System, Combination of Timber Framework and Concrete

Timber frame and concrete combination system: the vertical loads are taken by the interior post-and-beam system system, where columns and beams are simply pinned together by invinsible steel pins. All shear forces are taken by a one and a half ...

Drawings 2 Items

Photographs 1 Items

Sala House: Photographs of drawings 01/01/1982

Project, Drawing

Second and third floor plans with exterior concrete wall construction detail, and front door and balustrade architectural details.
