Drawing

Sweet Potatoes Offices and Workshops: Presentation Drawing – Floor Patterns

01/03/1985

Architectural Design, Presentation Drawing, Floor Plan

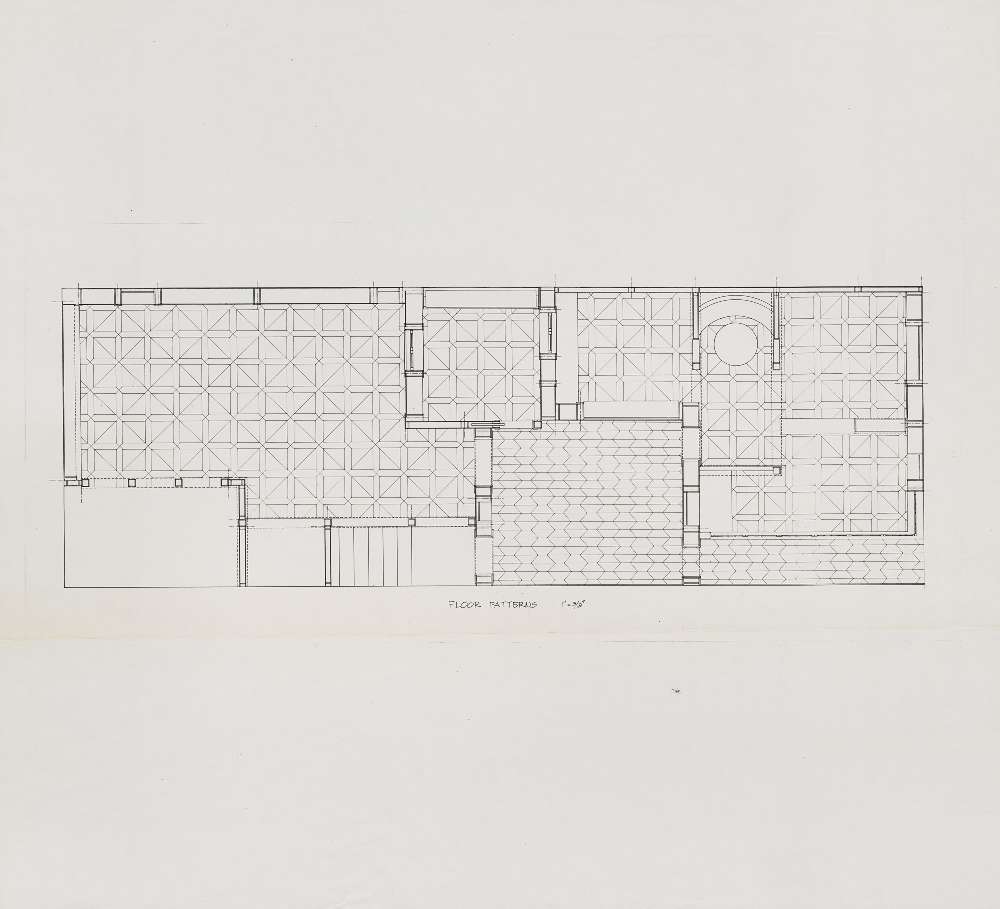

A floor plan of the workshop and the office spaces, depicting the wood floor patterns implemented.

Designers:

Christopher Alexander, Artemis Anninou, Gary Black, Berkeley, CA, U.S.A.

Medium:

Blueprint

Size:

12"x24"

Scale:

3/8"=1'

Download File

Content of

Project

Offices and Workshops for Sweet Potatoes Children's Clothing Factory 1985 to 1986

1509A San Pablo Avenue, 94702, Berkeley, CA, U.S.A.

Offices & Workshops, Office Furniture, Realized , Construction completed in Apr-1986

Client:

Mrs. Anna Sala, Ms. Josie Jurcivina

C.E.S. staff:

Christopher Alexander, Artemis Anninou, Gary Black, Mark Brinner

Contractor:

Center for Environmetal Structure

Project cost:

$20,000

Design and construction process:

1) Layout of the offices by "Sweet Potatoes" employees: They used a patented office furniture layout process developed by C.E.S. This process allowed users to work with C.E.S. staff to lay out all common areas and individual workstations for themselves. The result was a highly personalized plan of the office, generated entirely by "Sweet Potatoes" employees. 2) Design and fabrication of the individual pieces of furniture at the C.E.S. Workshop in Martinez 3) Installation of the furniture by C.E.S. Personnel: As pieces were completed, they were shipped to Sweet Potatoes, where the C.E.S. assembly crew installed the different items, including thick walls, columns, doorways, desks, lighting, ceilings, floors, cabinets, screens, chairs.

Project stages:

Office layout process used by clients Layout on site by clients and C.E.S. Design Development drawings done after layout Direct Construction management and on-site design decisions

2,300 square feet of interior office space for the management and administrative staff for "Sweet Potatoes" clothing factory to accommodate two partners and eleven employees. All interior furnishings, walls, floors, ceilings, lighting, built-in cabinets, desks, storage, chairs, tables, custom fitted ...

References

Drawings

Haworth New Office Furniture System: Floor Patterns / Sweet Potatoes Offices and Workshops: Floor Patterns - Design Development Drawings 01/12/1985

Construction Innovation, Design Development, Axonometric, Floor Plan

Designers:

Christopher Alexander, Artemis Anninou, Gary Black, Berkeley, CA, U.S.A.

Medium:

Original on Vellum

Size:

8 1/2"x11"

Scale:

1 1/2"=1'

Seven sheets of ink hardline drawings of floor patters with dimensions; the floor patterns depicted in the two axonometries and the respective plans were used in the project.
