Drawing

Sweet Potatoes Offices and Workshops: Presentation Drawing – Layout Plans

01/03/1985

Architectural Design, Presentation Drawing, Floor Plan

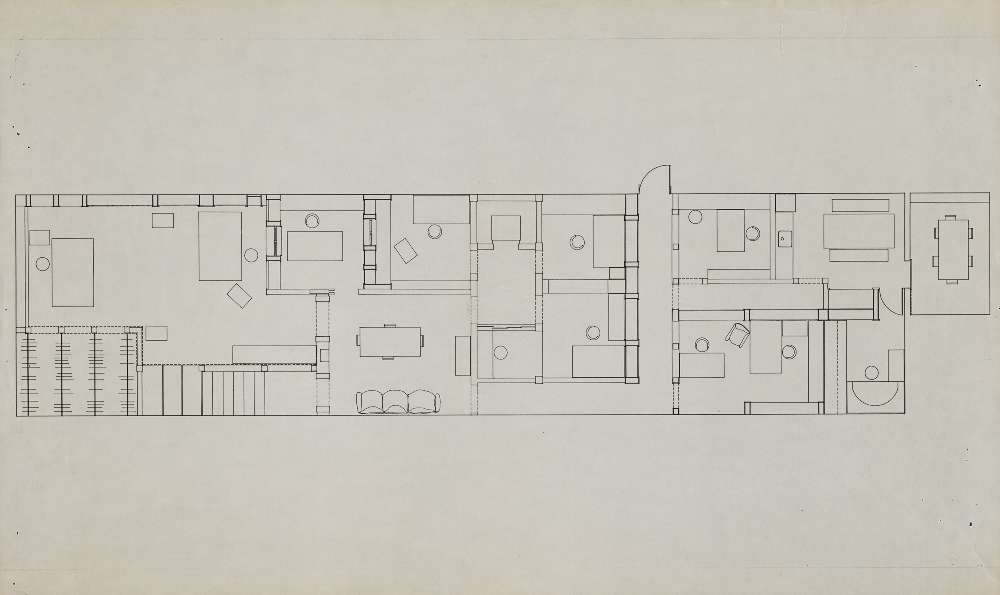

Floor Plan of the final design of the office and workshop areas, depicting thick-wall divisions and furniture arrangements.

Designers:

Christopher Alexander, Artemis Anninou, Gary Black, Berkeley, CA, U.S.A.

Medium:

Original on Vellum

Size:

14 1/2"x24"

Scale:

3/4"=1'

Download File

Content of

Project

Offices and Workshops for Sweet Potatoes Children's Clothing Factory 1985 to 1986

1509A San Pablo Avenue, 94702, Berkeley, CA, U.S.A.

Offices & Workshops, Office Furniture, Realized , Construction completed in Apr-1986

Client:

Mrs. Anna Sala, Ms. Josie Jurcivina

C.E.S. staff:

Christopher Alexander, Artemis Anninou, Gary Black, Mark Brinner

Contractor:

Center for Environmetal Structure

Project cost:

$20,000

Design and construction process:

1) Layout of the offices by "Sweet Potatoes" employees: They used a patented office furniture layout process developed by C.E.S. This process allowed users to work with C.E.S. staff to lay out all common areas and individual workstations for themselves. The result was a highly personalized plan of the office, generated entirely by "Sweet Potatoes" employees. 2) Design and fabrication of the individual pieces of furniture at the C.E.S. Workshop in Martinez 3) Installation of the furniture by C.E.S. Personnel: As pieces were completed, they were shipped to Sweet Potatoes, where the C.E.S. assembly crew installed the different items, including thick walls, columns, doorways, desks, lighting, ceilings, floors, cabinets, screens, chairs.

Project stages:

Office layout process used by clients Layout on site by clients and C.E.S. Design Development drawings done after layout Direct Construction management and on-site design decisions

2,300 square feet of interior office space for the management and administrative staff for "Sweet Potatoes" clothing factory to accommodate two partners and eleven employees. All interior furnishings, walls, floors, ceilings, lighting, built-in cabinets, desks, storage, chairs, tables, custom fitted ...

References

Scientific Research

The Uniqueness of People's Individual Worlds, Always Respected and Manifested

Areas of focus:

Design and Building Process

Guiding idea:

Participation of Users

In the last two centuries "modular" design has produced identical apartments, arranged in typical apartment blocks. The same is true for mass-produced furniture. Uniqueness, which expresses personal needs and whiches, and which springs from the need to adapt and connect ...
