Drawing

Eishin Campus – High School: Design Development Drawings – Hall of Faculty Offices

01/04/1984

Architectural Design, Design Development, Framing Plan, Details

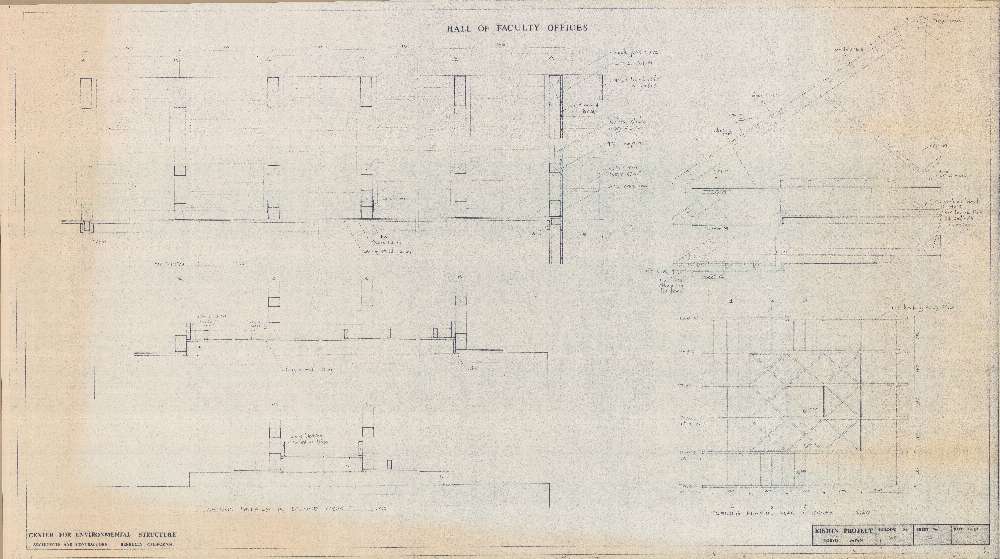

One sheet of drawings of the Hall of Faculty Offices, noted as Building No. 24, with the lounge room ceiling framing plan and roof truss with relevant details.

Designers:

Christopher Alexander, Artemis Anninou, Berkeley, CA, U.S.A.

Medium:

Blueprint

Size:

24"x42"

Scale:

1:50, 1:10

Content of

Project

Eishin Campus - High School: Hall of Faculty Offices 1982 to 1985

Nihongi 112-1, Iruma-shi, Saitama Prefecture, Japan

Educational, Realized , Construction completed in 1985

Client:

Higashino High School - Hisae Hosoi, Managing Director

C.E.S. staff:

Christopher Alexander, Hans-Joachim Neis, Gary Black, Ingrid Fiksdahl-King

Contractor:

Fujita Corporation, Tokyo, Japan

Project stages:

Layout on the site by clients and C.E.S. Design Development and Construction Drawings done after layout Construction management along with on-site design decisions

The Faculty Hall is a wooden, long and narrow building, located along a pedestrian alley, attached to the back side of the Administration building. Its back side looks into a secret garden.
