The Peru Project – Fourteen Low Cost Houses: Construction Drawings – Details

30/09/1971

Architectural Design, Construction Drawings, Section, Details

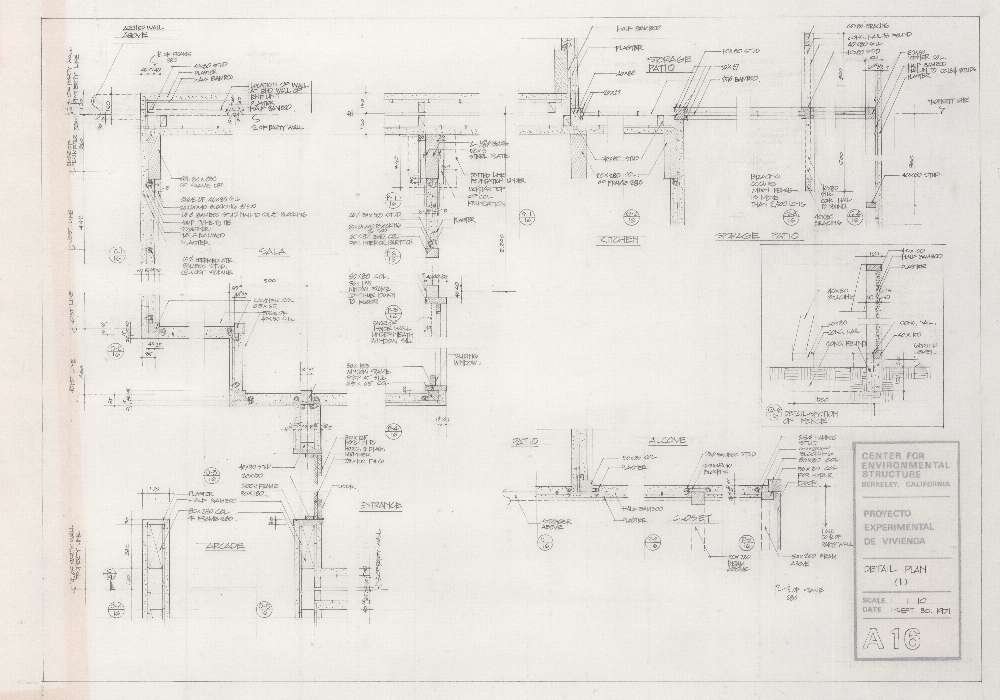

One large drawing which includes multiple construction details of walls and wall connections: corner connection of shared, party wall between houses and house wall, exterior and interior wall connections and door and window-opening details.

Designers:

Christopher Alexander, Sanford Hirshen, Sara Ishikawa, Christie Coffin, Shlomo Angel, Berkeley, CA, U.S.A.

Medium:

Original on Tracing Paper

Size:

24"x40"

Scale:

1:10

Download File

Content of

Project

Peru Project - Fourteen Low Cost Houses 1971 to 1975

11km north of Lima, Lima, Peru

Low Cost Housing, Realized , Invited Competition, Pilot construction project completed in 1975

Client:

Mr. Peter Land, United Nations coordinator of PREVI project

C.E.S. staff:

Christopher Alexander, Sanford Hirshen, Sara Ishikawa, Christie Coffin, Shlomo Angel

Contractor:

Conglomerate of local Peruvian contractors

Sponsor:

United Nations

Project cost:

$75,000

Project stages:

Construction Drawings

Construction of one group of fourteen (14) houses, part of the first experimental pilot project, built together with the schemes of the other twelve architectural firms which participated in the international PREVI competition.
