The Peru Project – Low Cost Housing for the United Nations: Composite bamboo & polyurethane foam beams – Drawings

01/01/1969

Preliminary Design, Axonometric, Details

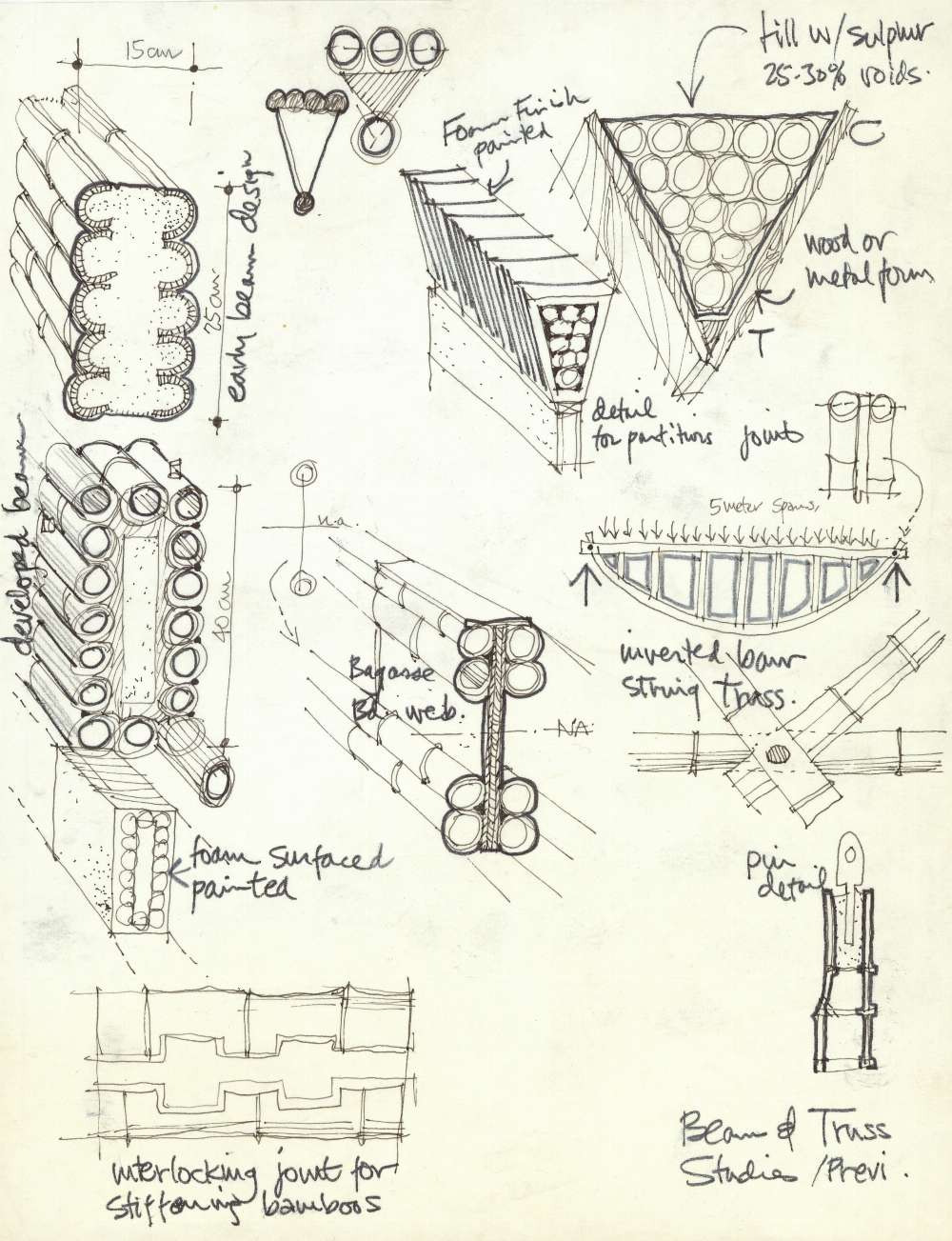

Sketches illustrating various types of composite bamboo and polyurethane foam beam. The beam developed was 40cm high with bamboos forming the beam perimeter. .

Designers:

Christopher Alexander, Sanford Hirshen, Sara Ishikawa, Christie Coffin, Shlomo Angel, Lima, Peru

Medium:

Original on Tracing Paper

Size:

8 1/2"x11"

Download File

Content of

Construction Innovation 1 Items

Peru Project - Low Cost Housing for the United Nations: Composite bamboo foam beams 1969

Construction System, Bamboo Foam Beam & Plank

Created by:

Christopher Alexander, Sanford Hirshen, Sara Ishikawa, Christie Coffin, Shlomo Angel

Boxed beams rectangular in section, 20 cm wide, 40 cm deep and 5 meters long, made of 6cm bamboos, placed over plywood templates, with a core of poly-urethane fire-retardant foam, foamed in place. The bamboos are pinned and spot glued ...
