The Peru Project – Low Cost Housing for the United Nations: Composite bamboo & polyurethane foam beams and planks against the wall

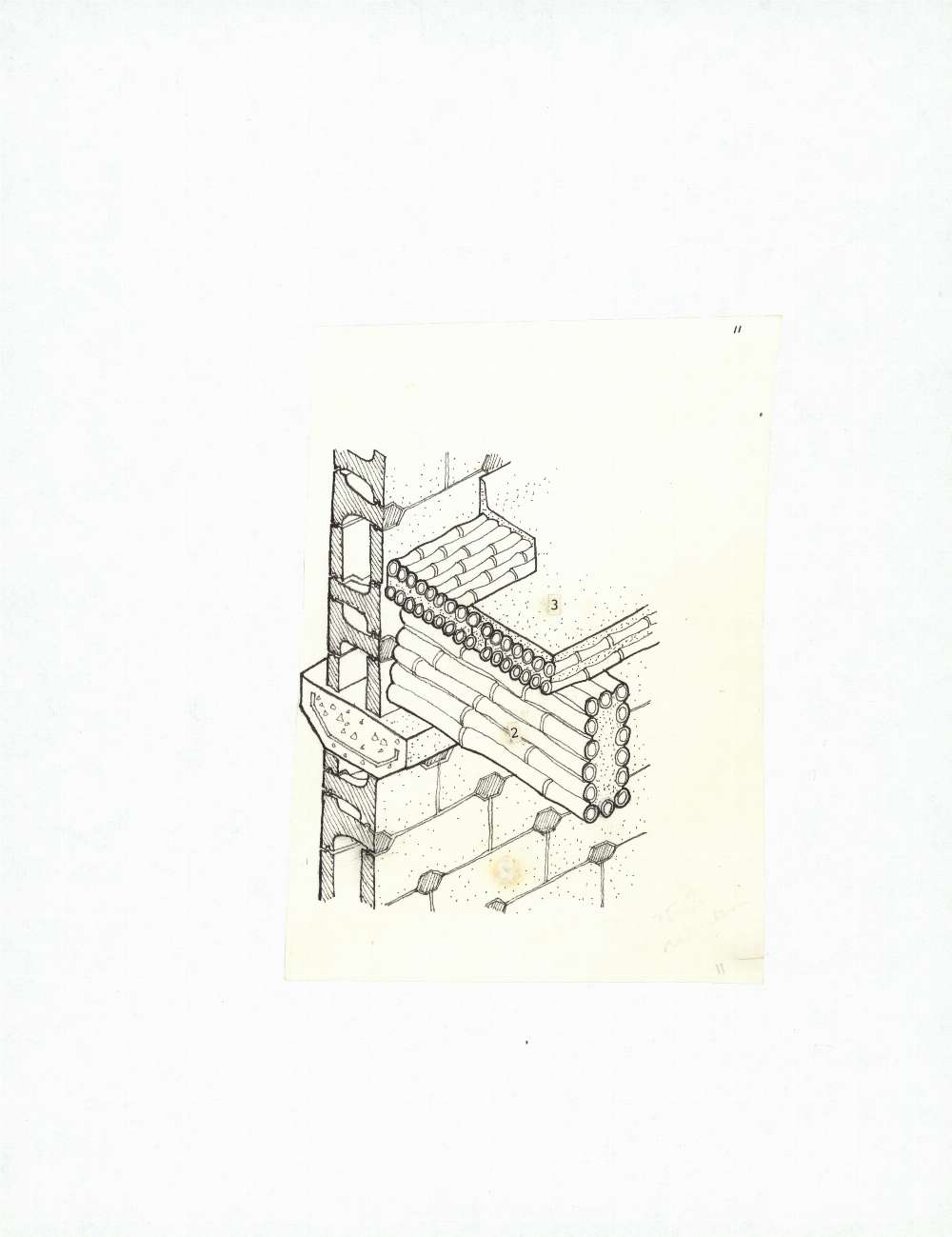

01/01/1969Axonometric section of an exterior mortarless block cavity wall and its connection to the composite bamboo/polyurethane beam and to the bamboo/polyurethane plank, used for floors.
Content of
-
Peru Project - Low Cost Housing for the United Nations: Composite bamboo foam beams
1969
Boxed beams rectangular in section, 20 cm wide, 40 cm deep and 5 meters long, made of 6cm bamboos, placed over plywood templates, with a core of poly-urethane fire-retardant foam, foamed in place. The bamboos are pinned and spot glued ...
-
Peru Project - Low Cost Housing for the United Nations: Composite bamboo foam planks
1969
The 2nd floor and roof structure are bamboo/polyurethane foam sandwitch planks laid over beams. The outer skin of the planks are made of 6cm bamboos and the core is two lbs. density polyurethane. A sand-sulfur topping is poured after planks ...
-
Peru Project - Low Cost Housing for the United Nations: Interlocking concrete blocks for mortarless block wall
1969
Bearing walls, shear walls and ground floor partitions are cavity walls of interlocking, self-aligning concrete blocks, moulded on site. The block is self-supporting up to a height of three floors. Vertical edges, corners and horizontal upper edges are either poured ...
