The Campus of Eishin- High School: Central Hall heavy timber truss with curved members – Photographs

Douglas fir horse-shoe-shaped truss, a pure compression truss, with no interior bracing, but with a longitudinal exterior X-truss. The truss is connected to the massive concrete piers at the base with moment connections.

Christopher Alexander recognized the importance of the geometry of centers and for years he was looking for the common structural features among buildings, paintings, streets, carpets, doors, windows, etc. which have "life" and "wholeness". He identified fifteen structural features which ...

Focusing primarily on the pure beauty of the geometric order, which comes, above all, from the building structure (columns, walls, beams, vaults and so forth), specifically from the aperiodic grids which form the abstract underpinning of the building structure.

One of the main topics of research, included in every building project, was to identify, early on in the design process, the material and techniques of construction. This would re-establish building as an art, and allow rapid shaping and adaptation, ...

The Central Hall is located at the end of the homebase street. Α student gathering area with four-foot-thick concrete base walls and arched openings, with built-in benches, which double as entrances to the building. Arches and seats form alcoves, and ...

The American contribution to the 14th Venice Architecture Biennale in 2014, entitled OfficeUS, looked into the immense built production of American architects abroad. The curators of the US Pavilion chose the Center for Environmental Structure to be among the firms ...

The 40 architects already awarded the Global Award for Sustainable Architecture participated and exhibited their works. The exhibition was on international touring until 2016. Christopher Alexander’s participation included the extensive presentation of the Mexicali project in the “Saving the People’s Habitat” ...

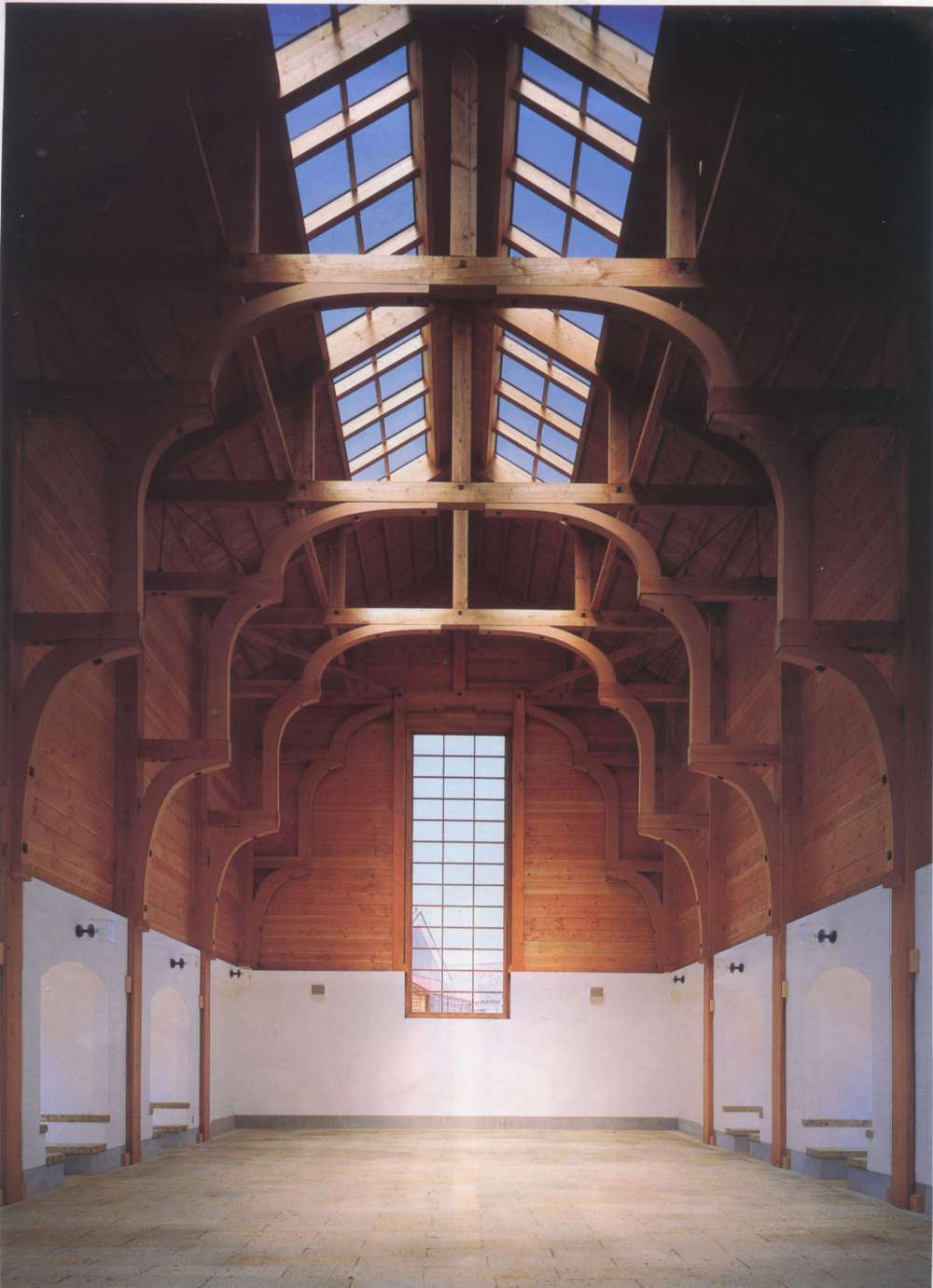

Four views of the building interior; they focus on the timber truss details and the contrast between the concrete base and the timber structure above.
