Photograph

The Campus of Eishin- High School: College Buildings – Flat beam ceiling structural design in large classrooms – Photographs

01/07/1987

Interior View

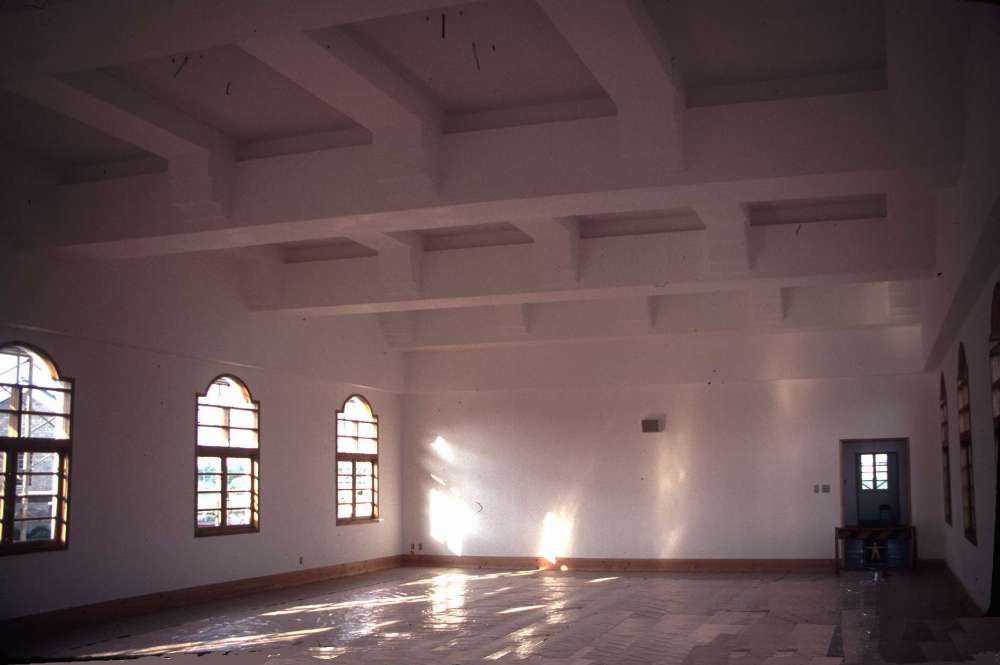

Interior of one lecture room with the structure of the ceiling beams.

Photographer:

Christopher Alexander/C.E.S., Iruma-shi, Saitama, Japan

Source:

Digital

Characteristics:

Color

Content of

Construction Innovation

Eishin Campus - High School: College Buildings structural design of flat ceiling beams in large classrooms, within the aperiodic structural grid of the building 1985

Construction System, Reinforced Concrete

Created by:

Christopher Alexander, Hansjoachim Neis, Artemis Anninou, Ingrid Fiksdahl-King

The ceiling designed with massive concrete crossbeams at first to cope with the wide span, and a horizontal mat of wide and flat beams in close spacing, acting as a horizontal moment-resisting diaphragm, provides resistence to horizontal forces caused by ...

References

Scientific Research

Innovative Construction Systems, Techniques and Materials

Areas of focus:

Design and Building Process

Guiding idea:

Construction Innovation

One of the main topics of research, included in every building project, was to identify, early on in the design process, the material and techniques of construction. This would re-establish building as an art, and allow rapid shaping and adaptation, ...

Projects

Eishin Campus - High School: College Buildings D and E 1982 to 1987

Nihongi 112-1, Iruma-shi, Saitama Prefecture, Japan

Educational, Realized , Construction completed in Jun-1987

Client:

Higashino High School - Hisae Hosoi, Managing Director

C.E.S. staff:

Christopher Alexander, Hans-Joachim Neis, Gary Black, Ingrid Fiksdahl-King, Artemis Anninou

Contractor:

Fujita Corporation, Tokyo, Japan

Project cost:

$1,500,000

Project stages:

Layout on the site by clients and C.E.S. Use of full scale mock-ups Design Development and Construction Drawings done after layout Construction management along with on-site design decisions Innovative construction methods

The two college buildings on the north side of the College Complex were incorporated into the High School; they are located to the right and left of the Central Hall, flanked by the Arts and Science buildings. Each two-storey college ...

Drawings

Eishin Campus - High School: College Buildings structural design of flat ceiling beams in large classrooms, within the aperiodic structural grid of the building - Design Development Drawings 27/04/1984

Construction Innovation, Design Development, Framing Plan, Section, Details

Designers:

Christopher Alexander, Hansjoachim Neis, Artemis Anninou, Ingrid Fiksdahl-King, Berkeley, CA, U.S.A.

Medium:

Blueprint

Size:

Extract from 24"x42" drawing

Scale:

1:50, 1:10

Four detailed drawings of the large classrooms, including a) the ceiling framing plan of the room with the wide and flat beams and the massive cross beams, b) the longitudinal section, c) the cross section, and d) a construction detail.
