The Peru Project – Fourteen Low Cost Houses: Photographs of drawings

01/01/1971

Drawing

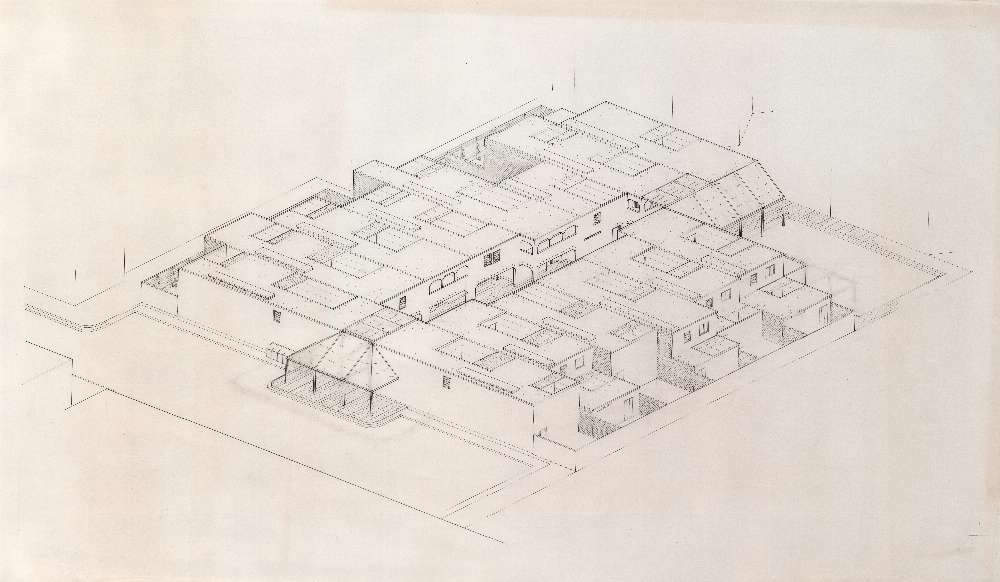

Axonometric drawing of the spatial organization of the 14-house constructed prototype cluster.

Photographer:

Christopher Alexander/C.E.S., Berkeley, CA, U.S.A.

Source:

PMT, Negative

Characteristics:

8 1/2"x11", B&W

Content of

Project

Peru Project - Fourteen Low Cost Houses 1971 to 1975

11km north of Lima, Lima, Peru

Low Cost Housing, Realized , Invited Competition, Pilot construction project completed in 1975

Client:

Mr. Peter Land, United Nations coordinator of PREVI project

C.E.S. staff:

Christopher Alexander, Sanford Hirshen, Sara Ishikawa, Christie Coffin, Shlomo Angel

Contractor:

Conglomerate of local Peruvian contractors

Sponsor:

United Nations

Project cost:

$75,000

Project stages:

Construction Drawings

Construction of one group of fourteen (14) houses, part of the first experimental pilot project, built together with the schemes of the other twelve architectural firms which participated in the international PREVI competition.

References

Drawings

The Peru Project - Fourteen Low Cost Houses: Preliminary Design Drawings 01/01/1971

Architectural Design, Project, Preliminary Design, Axonometric

Designers:

Christopher Alexander, Sanford Hirshen, Sara Ishikawa, Christie Coffin, Shlomo Angel, Berkeley, CA, U.S.A.

Medium:

Original on Tracing Paper

Size:

24"x40"

Scale:

1:100

An axonometric drawing depicting the spatial organization of one neighborhood cell as it was built.
