The Julian Street Inn – Shelter for the Homeless: Building Permit drawings of Set R “Residential Building” – Construction details

10/08/1987

Architectural Design, Permit Drawing, Details

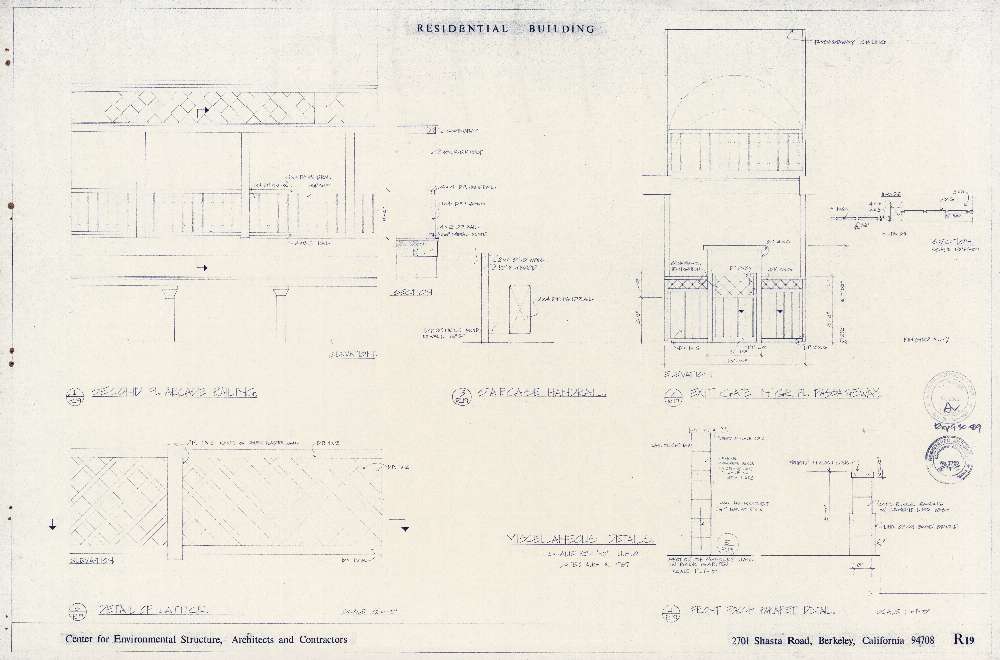

Architectural design drawing sheet with construction details of the second floor arcade railng and lattice, the staircase handrail, the exit iron gate, and the front porch parapet.

Designers:

Christopher Alexander, Gary Black, James Maguire, Eleni Coromvli, Berkeley, CA, U.S.A.

Medium:

Blueprint

Size:

24"x36 1/2"

Scale:

1"=1'

Download File

Content of

Project 1 Items

Julian Street Inn - Shelter for the Homeless 1986 to 1990

Julian St. & Montgomery St., San Jose, CA, U.S.A.

Civic, Realized, Construction completed in 1989; final interior painting in 1990

Client:

Housing for Independent People - Al DiLudovico, Executive Director

C.E.S. staff:

Christopher Alexander, Gary Black, Artemis Anninou, Carl Lindberg, James Maguire, Eleni Coromvli, Kleoniki Tsotropoulou

Contractor:

Oliver and Company, with Center for Environmetal Structure as major specialty subcontractor

Project cost:

$1,700,000

Project stages:

Pattern language for project by clients and C.E.S. Layout by clients and C.E.S. Use of full scale mock-ups Design Development and Building Permit drawings Direct Construction management and on-site design decisions Budget and subcontractors under C.E

Design and construction of a shelter for homeless people, to serve 50 to 100 people, on a site of 13,000 sf. The building of 15,000 square feet includes offices, living areas with a dining hall, sleeping rooms, courtyards and gardens. ...
