The Julian Street Inn – Shelter for Homeless: Lacework concrete trusses with curved members shot in the air – Photographs of mock-up

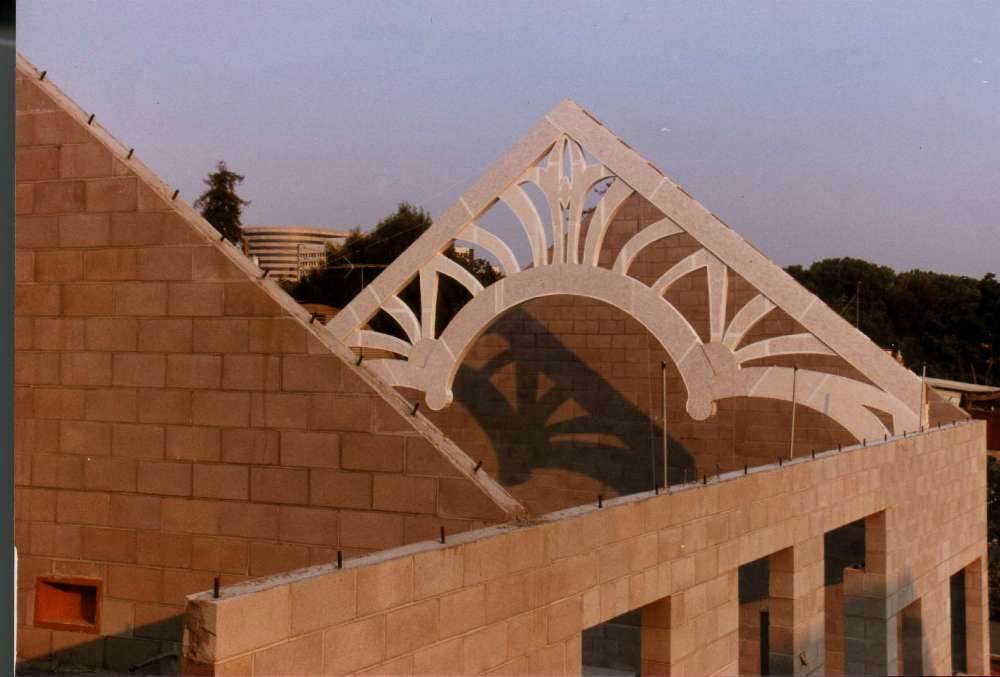

01/11/1988Photograph of the full scale mock-up of the final concrete truss built out of reinforced cardboard, following the dimensions and details of the finally engineered truss, and lifted on the dining hall walls, to be tested in its real place for fine tuning, before building the formwork for shooting the gunnite.
